CM.40
Caterpillar Length Counter
High-Precision Measuring Solution for Wire & Cable Production
Book a Demo
Overview
The CM.40 is built on a solid steel structure with a compact and ergonomic design, making it suitable for a wide range of extrusion and processing lines. The system combines precision mechanics, controlled traction, and high-resolution encoding to deliver accurate and repeatable measurements even at high production speeds.

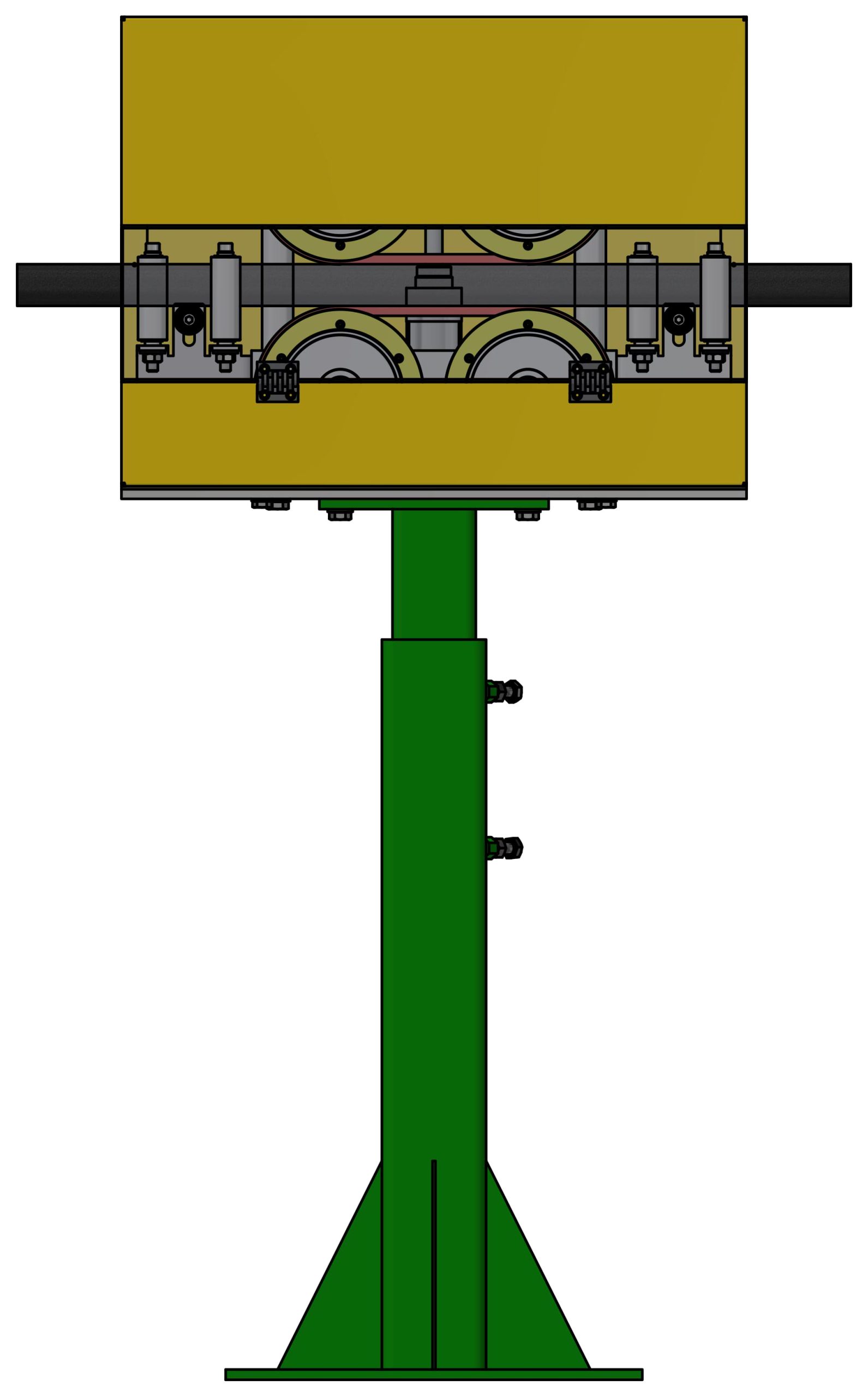

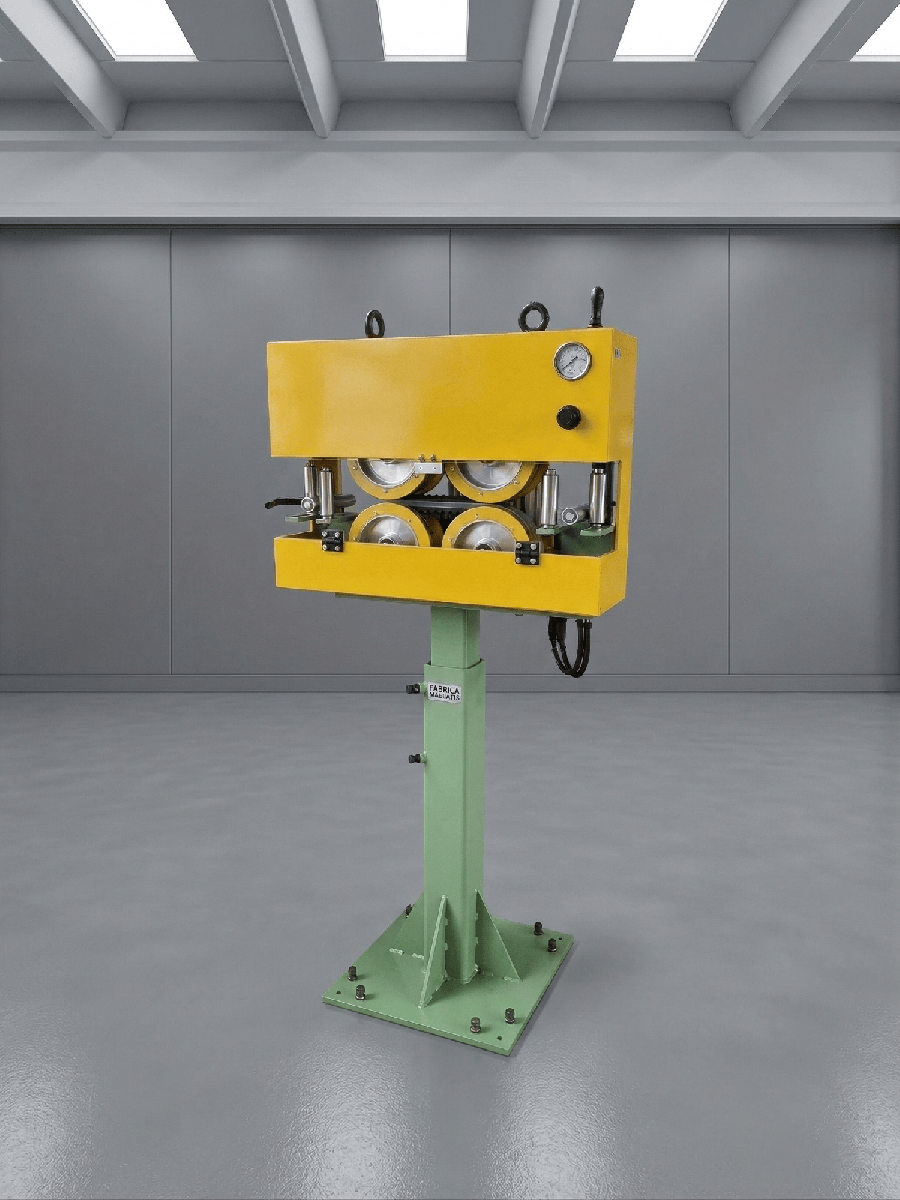

The mechanical layout highlights the compact caterpillar configuration with synchronized belt traction and integrated guiding system.
Key Features
What sets the CM.40 apart
Robust Mechanical Structure
- Heavy-duty steel stand with base plate for maximum stability
- Telescopic vertical column adjustable from 950 mm to 1150 mm (machine axis alignment)
- Designed for long-term industrial use with minimal maintenance
Advanced Cable Guiding System
- Dual inlet/outlet guiding units ensuring precise cable positioning
- 2 adjustable offset vertical rollers (0–50 mm range) per unit
- 1 fixed lower horizontal roller aligned with line axis
- Smooth cable entry and exit, reducing stress and deformation
High-Performance Caterpillar System
- Lower caterpillar unit (fixed) with polyurethane belt (50 mm width), rubber-coated (60 Shore A)
- Upper caterpillar unit (movable) with identical belt configuration
- Linear motion via recirculating ball bushings for high precision and durability
Pneumatic Control & Safety
- Pneumatic lifting of upper caterpillar
- Gravity-assisted closing for controlled contact pressure
- Integrated sensor for open/closed position detection
Precision Measurement
- High-resolution 1024 PPR encoder
- Ensures accurate length counting and process synchronization
- Suitable for integration with line control systems
