CAT.1500
Caterpillar Haul-Off
High-Performance Traction System for Wire & Cable Production
Book a Demo
Overview
The CAT.1500 is built around a rigid electro-welded steel structure housing the complete transmission system and control components. Its dual caterpillar design with high-resistance rubber belts provides uniform traction while maintaining cable integrity.
The machine features a compact and enclosed structure with an integrated control panel and optimized internal mechanics for efficient force distribution.
Key Features
What sets the CAT.1500 apart
Robust Structural Design
- Electro-welded steel frame for maximum rigidity and durability
- Compact and enclosed architecture for industrial environments
- Designed for continuous operation with minimal maintenance
High-Efficiency Caterpillar System
- Dual closed-loop high-resistance rubber belts
- Belt width: 150 mm
- Uniform traction across the entire contact length
Adaptive Pressure System
- Cable pressed between upper and lower belts via oscillating pressure pads
- Double-acting pneumatic cylinders
- Automatic compensation for cable diameter variations
- Ensures optimal grip without damaging the cable surface
Independent Pneumatic Control
- Separate pneumatic circuits for pressure cylinders and belt tensioning system
- Adjustable working pressure for process flexibility
- Consistent performance across different cable types
Advanced Drive System
- Driven by two AC motors coupled with gearboxes
- Full speed range covered without mechanical gearbox changes
- Smooth speed variation and precise traction control
Cable Guiding System
- Adjustable inlet and outlet guide rollers
- Facilitates easy cable threading
- Maintains correct alignment throughout operation
Operator Interface & Safety
- Front-mounted control panel for intuitive operation
- Integrated machine control buttons
- Front safety guard with interlocked safety locks
- Designed to comply with industrial safety standards
Electrical System
- Complete onboard electrical wiring
- Ready for integration with extrusion or processing lines
- Designed for reliability in continuous production environments
Technical Data
Contact Length
1300 mm
Max Cable Diameter (between belts)
160 mm
Max Belt Opening
180 mm
Belt Width
150 mm
Max Pulling Force
1500 kg
Upper Pressure Cylinders
5
Lower Pressure Cylinders
5
Belt Tension Cylinders
2
| Parameter | Value |
|---|---|
| Contact Length | 1300 mm |
| Max Cable Diameter (between belts) | 160 mm |
| Max Belt Opening | 180 mm |
| Belt Width | 150 mm |
| Max Pulling Force | 1500 kg |
| Upper Pressure Cylinders | 5 |
| Lower Pressure Cylinders | 5 |
| Belt Tension Cylinders | 2 |
Applications
- Medium and large cable extrusion lines
- Power cable production
- Rubber and thermoplastic cable processing
- High-load and high-diameter cable handling
Why CAT.1500
- High traction force up to 1500 kg
- Stable performance even with variable cable diameters
- No need for mechanical gearbox changes
- Precise control of speed and pulling force
- Robust, low-maintenance industrial design
Gallery

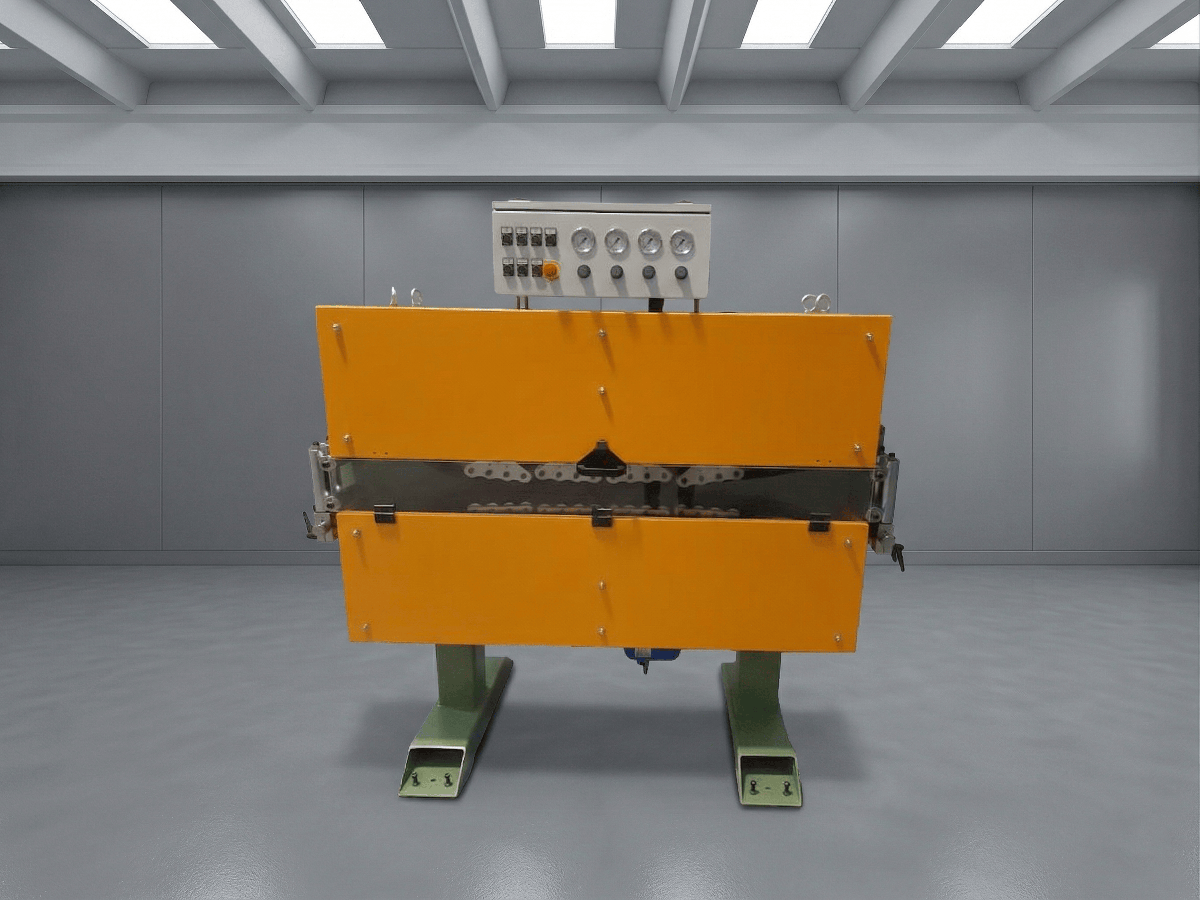

Product Photo

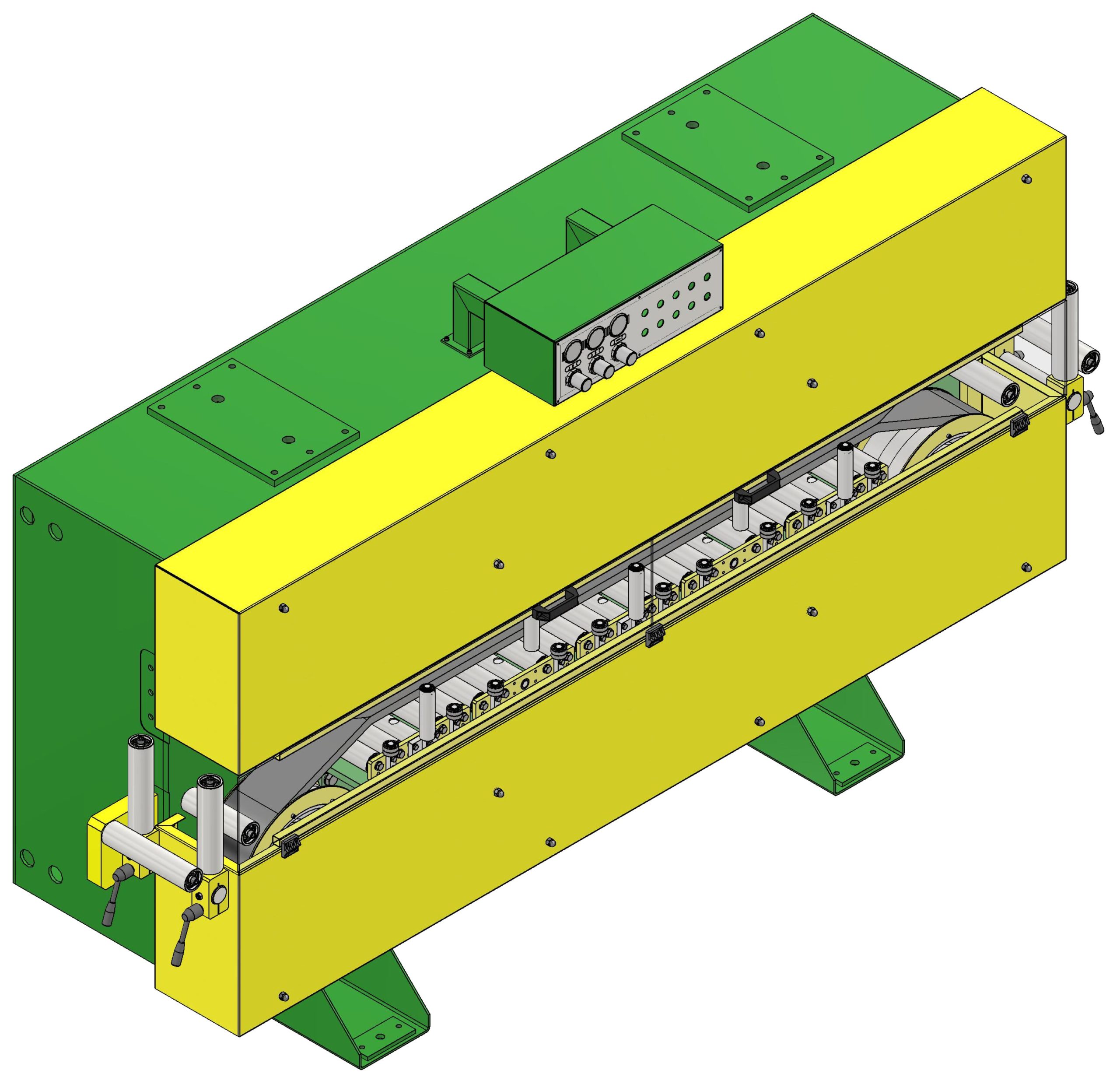

Technical Drawing
